Adams Rite 7100 Series Electric Strike Fail Secure 12DC

For single and double leaf aluminium doors

For remote access control of any narrow stile aluminium door equipped with Adams Rite 4700 series (or similar) deadlatch. Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself. The compact mechanism fits into an aluminium jamb section as shallow as 44.45mm.

The 7100 Series have flat faceplates for mounting in the frame of single action single leaf doors - for single action pairs of doors (radius nose/faceplate), you will require the 7101 Series.

NOTE: For maximum security specify an Adams Rite Deadlatch in conjunction with the electric strike/latch combination.

• For aluminium doors
• Jaw strength 907kg (2,000 lbs)
• Internal solenoid, 12 or 24v AC or DC
• Current draw 1.48A @ 12vAC, 0.332A @12vDC, 0.74A @ 24vAC, 0.19A @ 24vDC
• Facility to change duty from fail-safe to fail secure and vice-versa
• Optional monitoring: single - latch only; double - latch and solenoid

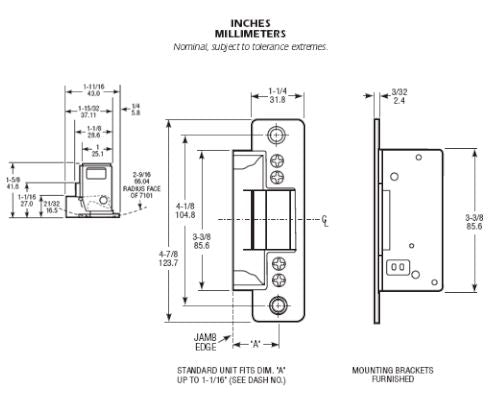

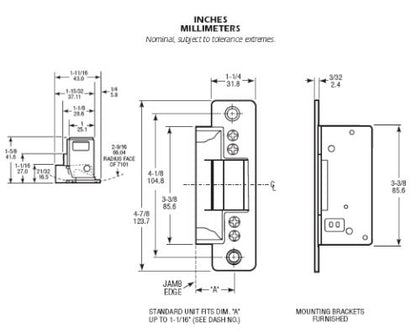

• Strike opening: 36.5mm x 15.9mm x 12.7mm.
• Faceplate length: 123.7mm, case depth: 41.6mm
• Non-handed
• Patented
• 7100-310-628 - 12v DC Fail secure
